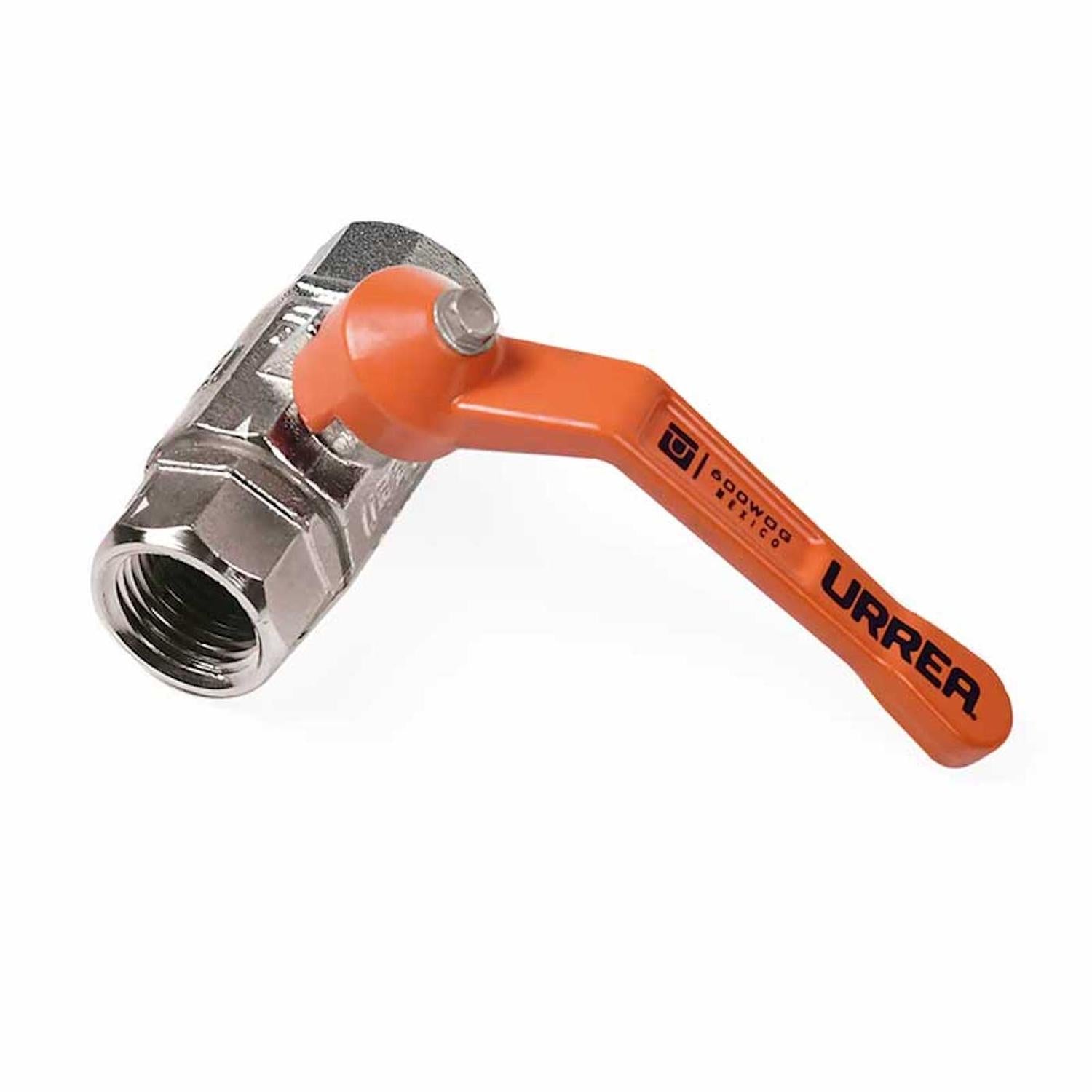

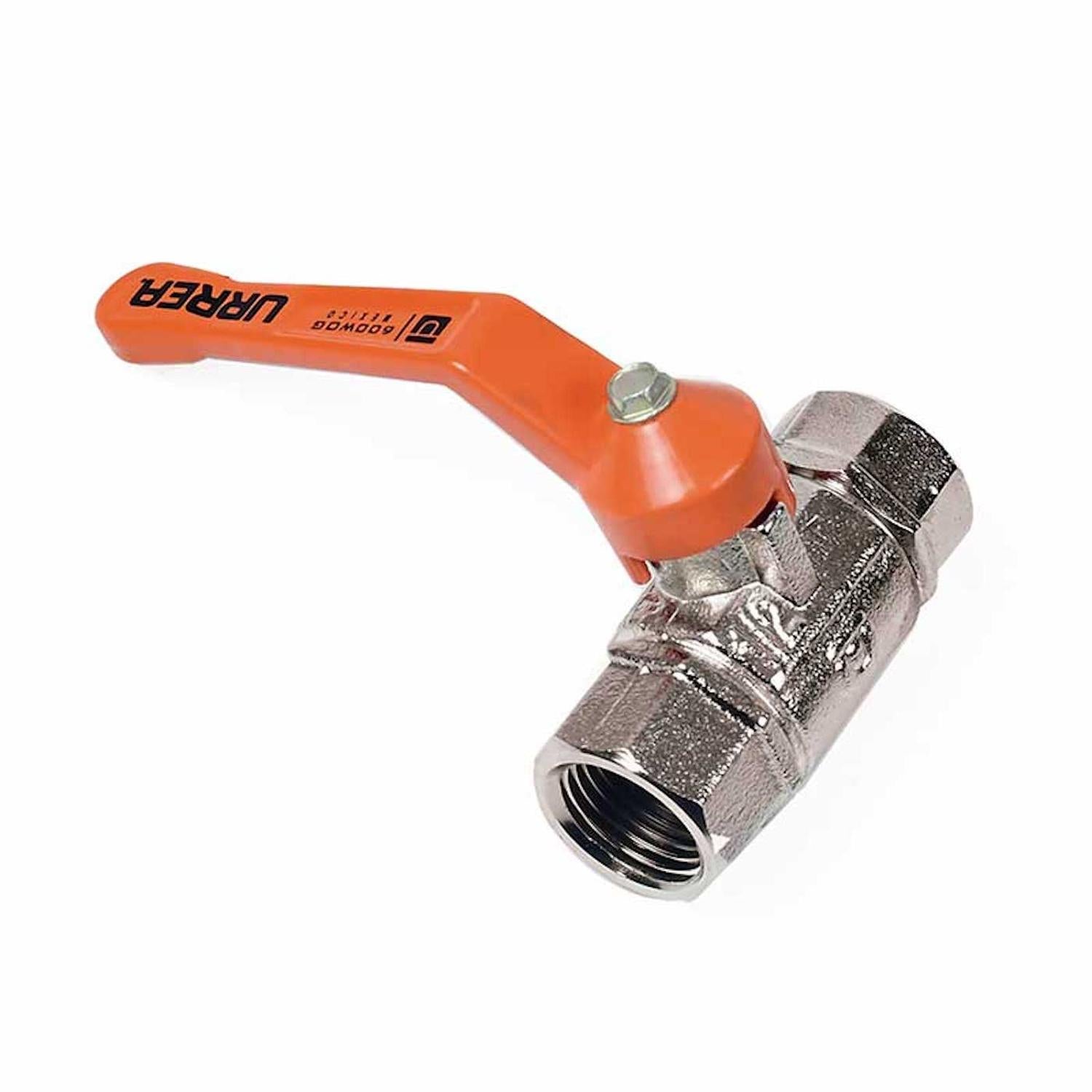

Urrea Válvula Esfera F-550 1 Pulgada

Designed to prevent leaks and water waste at home, in restaurants, or in 1-inch plumbing installations. The most recommended valve for less damage and to protect equipment and facilities.

Ideal for opening or closing the flow of liquids such as water, oil, and gas.
Steam pressure service.
Chrome-plated brass ball.
Brass to Teflon seal.
Nickel-plated body.
Full port.
Threaded ends (NPT).
Approved for LP gas handling.
Complies with NOM-002-CNA-1995 and ANSI/ASME B1.20.4 standards.

• Model: 550.25.


• Working Pressure:


• S.W.P. 125 Lbs/in² - 8.8 kgf/cm².


• W.O.G.: 600 Lbs/in² - 14 kgf/cm².


• Installation Torque: 14 kg/m.


• Working Temperature: 150 degrees Celsius.


• Made in Mexico.


• Packaging Dimensions:


• 16 x 13 x 8 cm.


• Packaging Weight:


• 0.550 kg.
